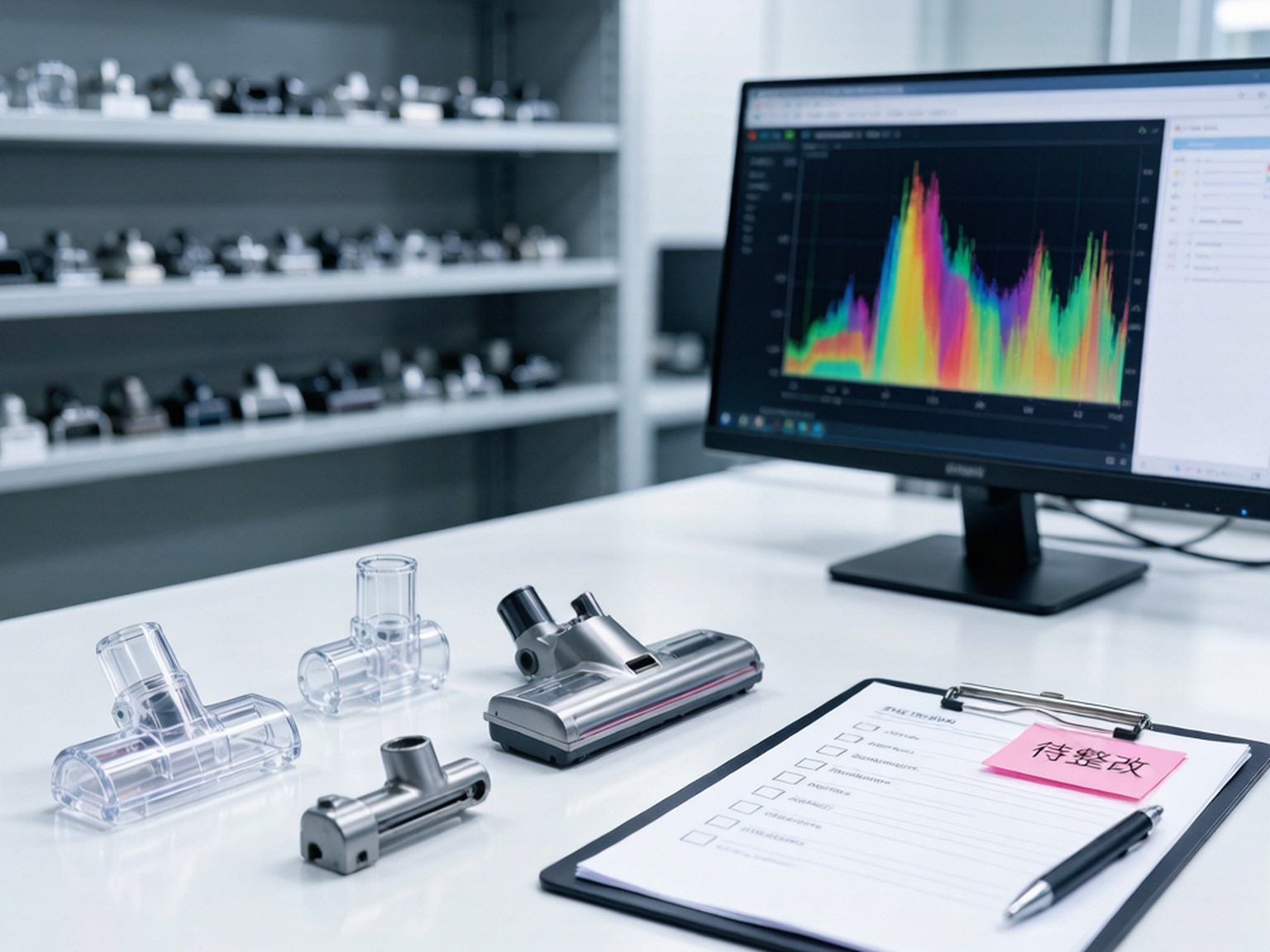

Vacuum cleaners have a large export volume and a high probability of being sampled. Judging from laboratory data, its recurring non-conformities focus on structural protection, temperature rise and battery safety. This article takes stock of the high-frequency non-conformities of vacuum cleaners under IEC 60335-2-2 according to the problem-cause-rectification context for enterprises to conduct self-inspection before submitting for inspection. Complete standard items are availableClassification of regulations and standards。

1. Nonconformance 1: Insufficient mechanical strength of hoses and connectors

The standard has a tension-torque test on hoses, and many samples have cracks or loose joints under 1 minute of tensile force. Most of the reasons are insufficient material wall thickness and thin buckle structure. The rectification is to increase the wall thickness of the hose, switch to a quick-connect joint with locking, and ensure rounded corners transition on the mold to avoid stress concentration. Ningbo Xuntong Standards first conducts a pull-twist survey during the pre-test meeting and informs the R & D of the critical value to avoid discovering that the strength is not up to standard during the formal test.

2. Nonconformance 2: Electric brush head blocked and temperature rise exceeds the standard

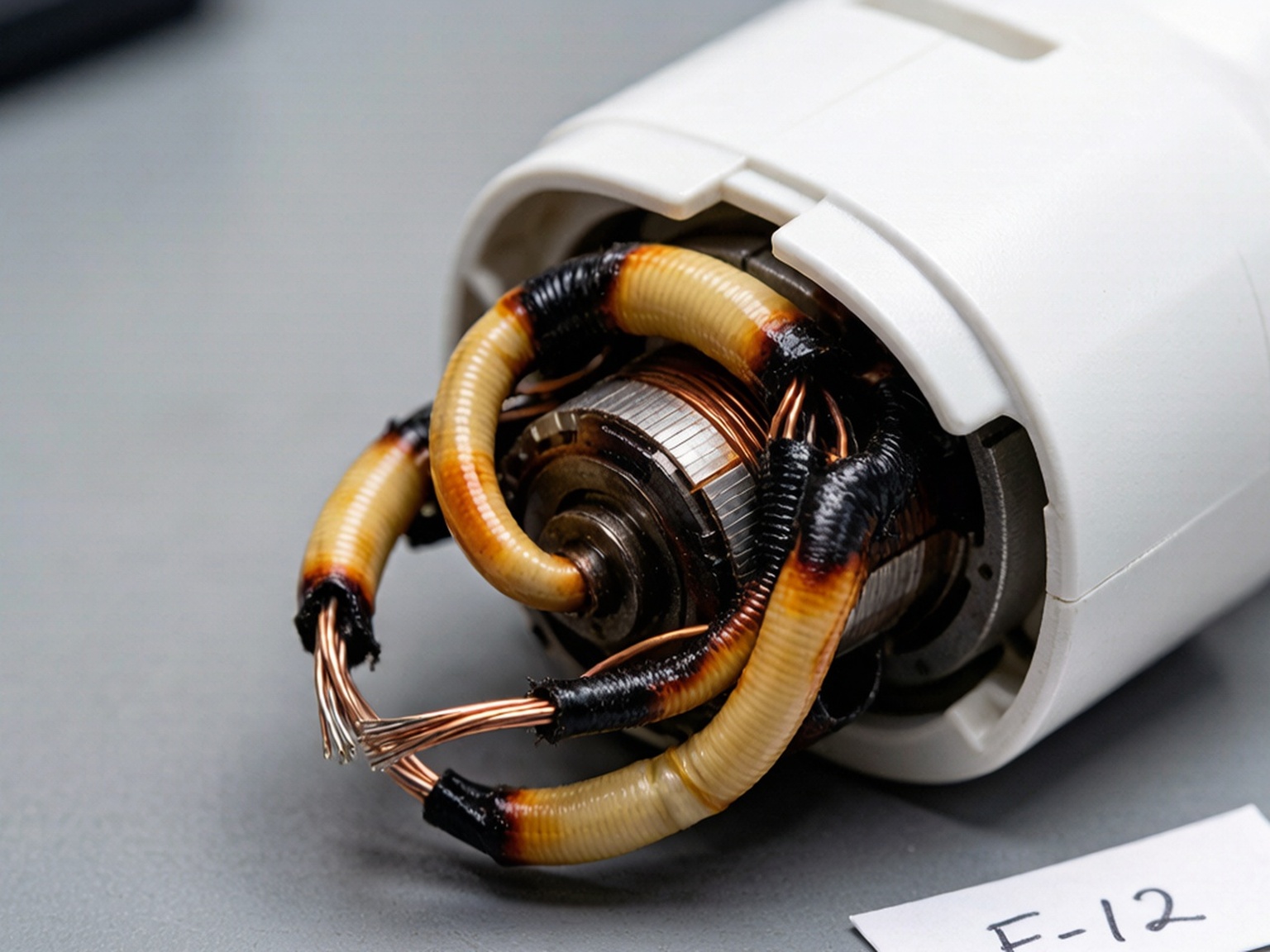

When simulating hair entanglement, the brush-head motor is blocked and the winding temperature exceeds the limit. The rectification idea is to add overheating protection (thermal protector or PTC) to the motor, or limit the blocked rotor current in the circuit; at the same time, optimize the air duct to leave sufficient margin for the winding temperature under normal operating conditions. Ningbo Xuntong Standards will conduct pre-testing. The meeting will specifically run under blocked rotor conditions, and the temperature rise curve will be handed over to R & D iteration, which usually will be within the limit within one or two rounds.

3. Nonconformance 3: Overheating of wireless battery and missing identification

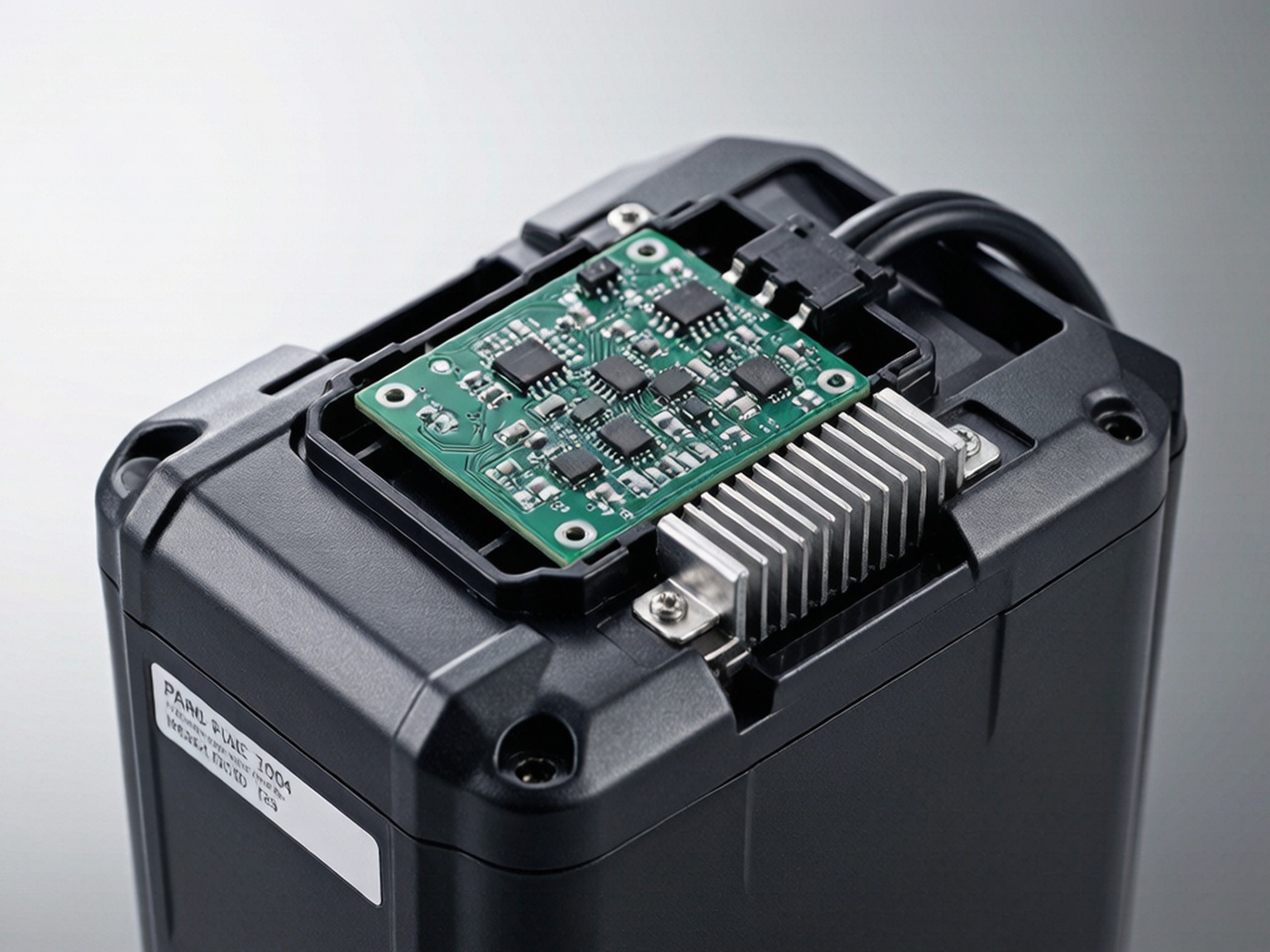

Lithium battery vacuum cleaners are prone to overheating when charged abnormally and single cells fail. The key point of rectification is that the battery pack has a built-in protective plate (triple protection of overcharge, overdischarge, and short circuit), and the protective plate is physically isolated from the battery cell; at the same time, the instructions must indicate that the disassembly and charging environment are prohibited. In addition, if the accessible metal brush head is electrified, it must be separated by double insulation. Please refer to the checklistHome appliance testing services, or visitNingbo Xuntong Standard Official WebsiteDownload the special self-inspection form for vacuum cleaners and digest the risks in advance.
