Skin and hair care appliances — facial steamers, beauty devices, curling irons and the like — are used in close contact with the face and skin, making the use scenario highly safety-sensitive. Once temperature rise or insulation fails, the user is directly harmed. Ningbo Xuntong Standard has found in testing that non-compliance concentrates on temperature rise, waterproofing and structural strength. This article reviews the most frequent failure modes and offers rectification ideas.

1. Temperature Rise and Accessible Surfaces

The working surface of beauty devices and curling irons is in direct contact with skin, and the standard sets clear and strict limits on accessible surface temperature rise. The most common failure is insufficient thermal insulation and too-small a gap between heating element and enclosure causing a hot handle or contact face. Ningbo Xuntong Standard recommends predicting temperature rise with thermal simulation before tooling, and adding insulation or a double-wall enclosure where necessary.

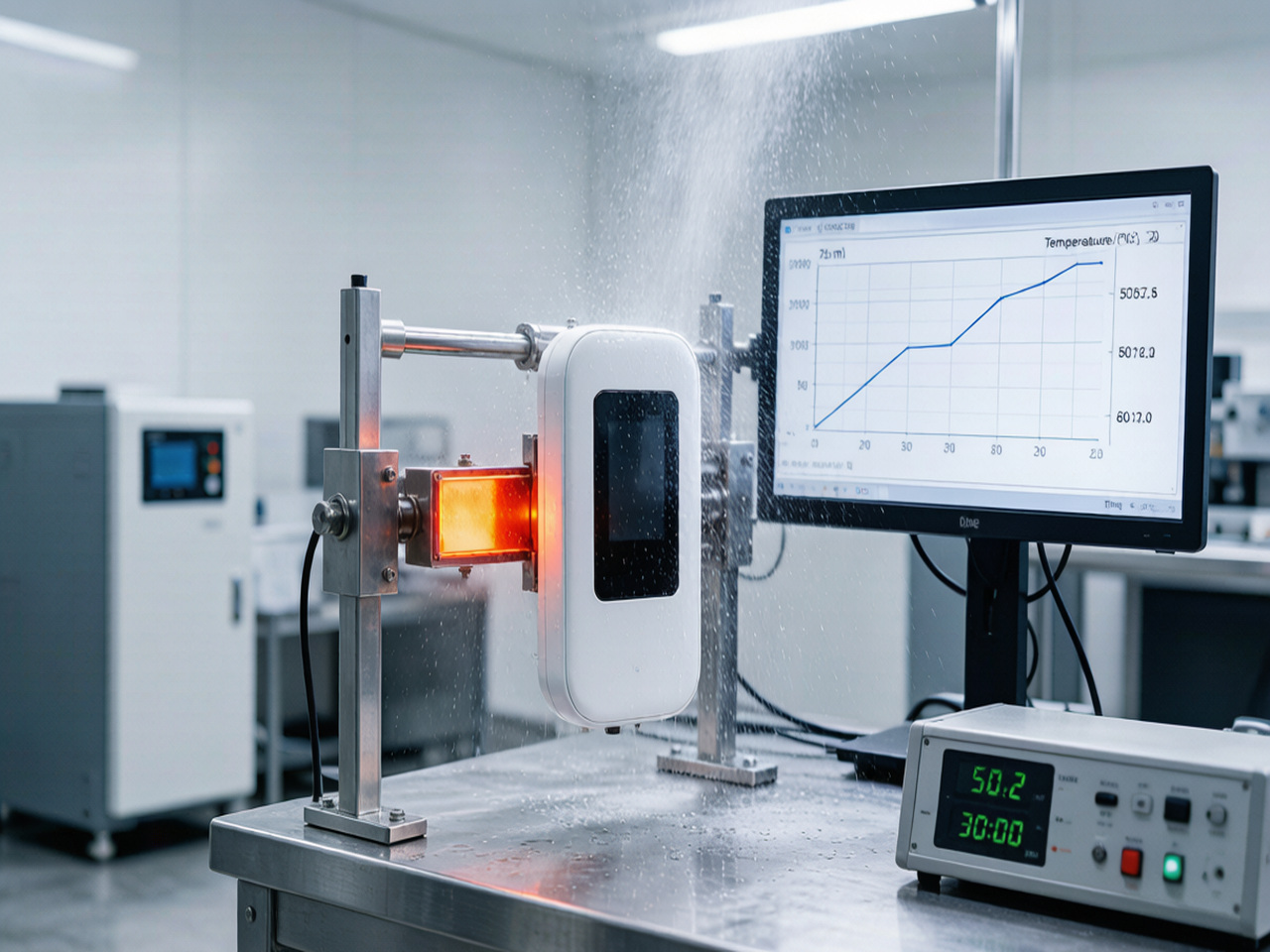

2. Waterproofing and Electric Shock Protection

Many such products are marketed as water-contact or steam-capable and must achieve the relevant IPX rating; after water ingress, internal live parts must not become accessible. Common problems include poor sealing at the filling port and uninsulated charging ports. Rectification includes adding seals, physically isolating the charging circuit from the wet cavity, and using higher-rated connectors.

3. Creepage Distance and Clearance

The compact body forces tight wiring, and the distance between live and weak-current circuits or between live parts and accessible metal is easily insufficient. Under damp or fouled conditions tracking is easy. Rectification should add barriers, use compliant sleeves, and reserve enough spacing at the PCB layout stage.

4. Mechanical Strength and Material Heat Resistance

The standard includes abnormal tests such as drop and impact. An enclosure cracking after drop and exposing live parts, or material releasing combustible gas at abnormal high temperature, are typical failures. Ningbo Xuntong Standard reminds that products in contact with skin should prioritise high-heat-resistant insulation and enclosure materials.

5. How Ningbo Xuntong Standard Can Help

Ningbo Xuntong Standard provides pre-testing, non-compliance diagnosis and rectification support for skin and hair care appliances under IEC 60335-2-23 / GB 4706.27, covering temperature rise, waterproofing, creepage and material heat resistance, and assists with CE, UKCA and other certifications. More standards interpretation is available in the regulations and standards column, appliance testing capability in the appliance testing column, and the official Ningbo Xuntong Standard website offers the quotation guide. Finding problems before mass production minimises rectification cost.
