Deep fat fryers and electric fryers operate for long periods in a high-temperature oil environment, combining high-power heating tubes with edible oil. Once temperature control or mechanical strength loses control, fire or scalding is easily triggered. Ningbo Xuntong Standard has found in testing that non-compliance concentrates on temperature control, mechanical strength and spill prevention. This article reviews the most frequent failure modes and offers rectification ideas.

1. Oil Temperature Control and Limiter

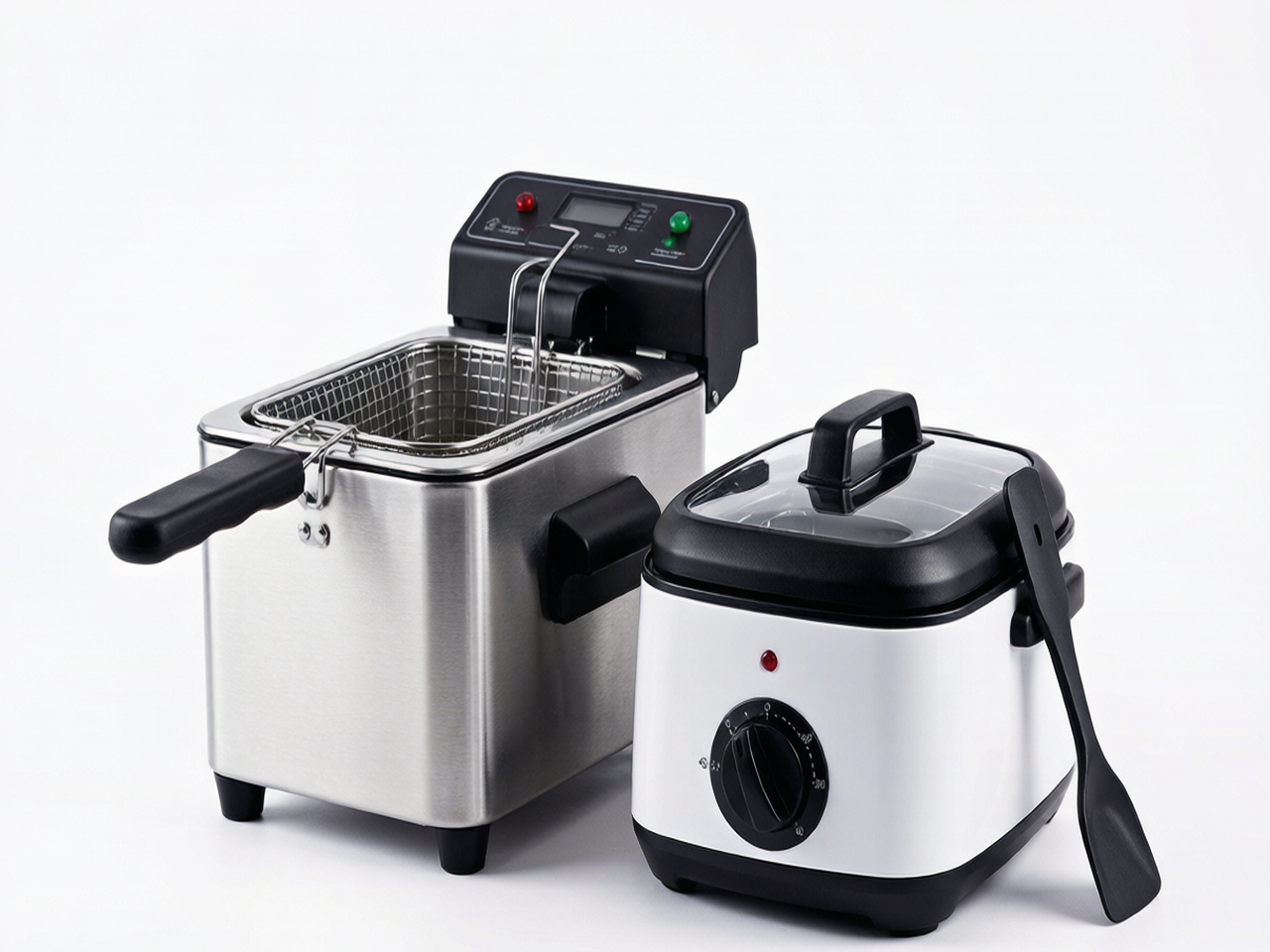

The core risk of frying appliances is loss of oil temperature control. The standard requires that, when the thermostat fails, an independent limiter must cut power and the oil temperature must not ignite surrounding materials. The most common failure is relying on a single thermostat with no independent limiter, or a limiter poorly contacted with the oil tank causing delayed action. Ningbo Xuntong Standard recommends dual temperature protection with the limiter placed close to the oil tank.

2. Mechanical Strength and Oil Spill Prevention

The integrity of the oil tank under drop and impact directly concerns safety. Typical failures include the enclosure cracking and leaking hot oil, and the handle loosening under full load. Rectification includes improving the strength of the tank and handle, using anti-loosening clips, and adding an anti-spill lip at the tank edge.

3. Electrical Safety and Creepage Distance

The close proximity of heating-tube leads and thermostat terminals to accessible metal, in a long-term oily environment, easily causes tracking. Rectification should add barriers, use oil-resistant high-temperature sleeves, and reserve compliant spacing at the PCB layout stage.

4. Marking and Scald Warning

Many enterprises pass on hardware but fail on markings: missing high-temperature surface warning, unclear fill-level marking, and dry-frying prohibition not in the export language. Ningbo Xuntong Standard reminds that marking items must be submitted with the appliance, especially for the EU and UK which require corresponding language and symbol rules.

5. How Ningbo Xuntong Standard Can Help

Ningbo Xuntong Standard provides pre-testing, non-compliance diagnosis and rectification support for deep fat fryers under IEC 60335-2-13 / GB 4706.13, covering oil temperature control, mechanical strength, electrical safety and marking, and assists with CE, UKCA and other certifications. More standards interpretation is available in the regulations and standards column, appliance testing capability in the appliance testing column, and the official Ningbo Xuntong Standard website offers the quotation guide. Finding problems before mass production minimises rectification cost.
