The electric iron is a typical high-power, handheld heating appliance and a focal point of safety inspections in every market. Through repeated export testing of electric irons, Ningbo Xuntong Standard has found that runaway temperature rise and electric-shock design defects are the two most common root causes of non-compliance. A systematic reading of IEC 60335-2-3 (the Chinese national equivalent GB 4706.2) helps manufacturers control risk before the tooling is finalized.

1. Applicable Standards and Scope

IEC 60335-2-3 specifies the safety requirements for household and similar electric irons, covering dry, steam, spray and travel irons in various forms. The Chinese equivalent is GB 4706.2, the EU version is EN 60335-2-3, and the UK version is BS EN 60335-2-3. Although these systems share the same origin, market-specific differences exist in plug formats, label languages and a few limit values, so enterprises must compare clause by clause when pursuing multi-market access.

2. Electric Shock Protection and Electrical Safety

During normal operation, the handle and accessible metal parts of the iron must be reliably grounded or use double insulation, and leakage current and electric strength must meet the general-standard requirements. Positions such as the steam nozzle and water-filling port must prevent the user from accidentally touching live parts during operation. Ningbo Xuntong Standard recommends that enterprises focus their structural review on the interruption capacity of the thermostat and thermal cutoff, which is the last line of defense against electric shock and fire.

3. Temperature Rise and Overheat Protection

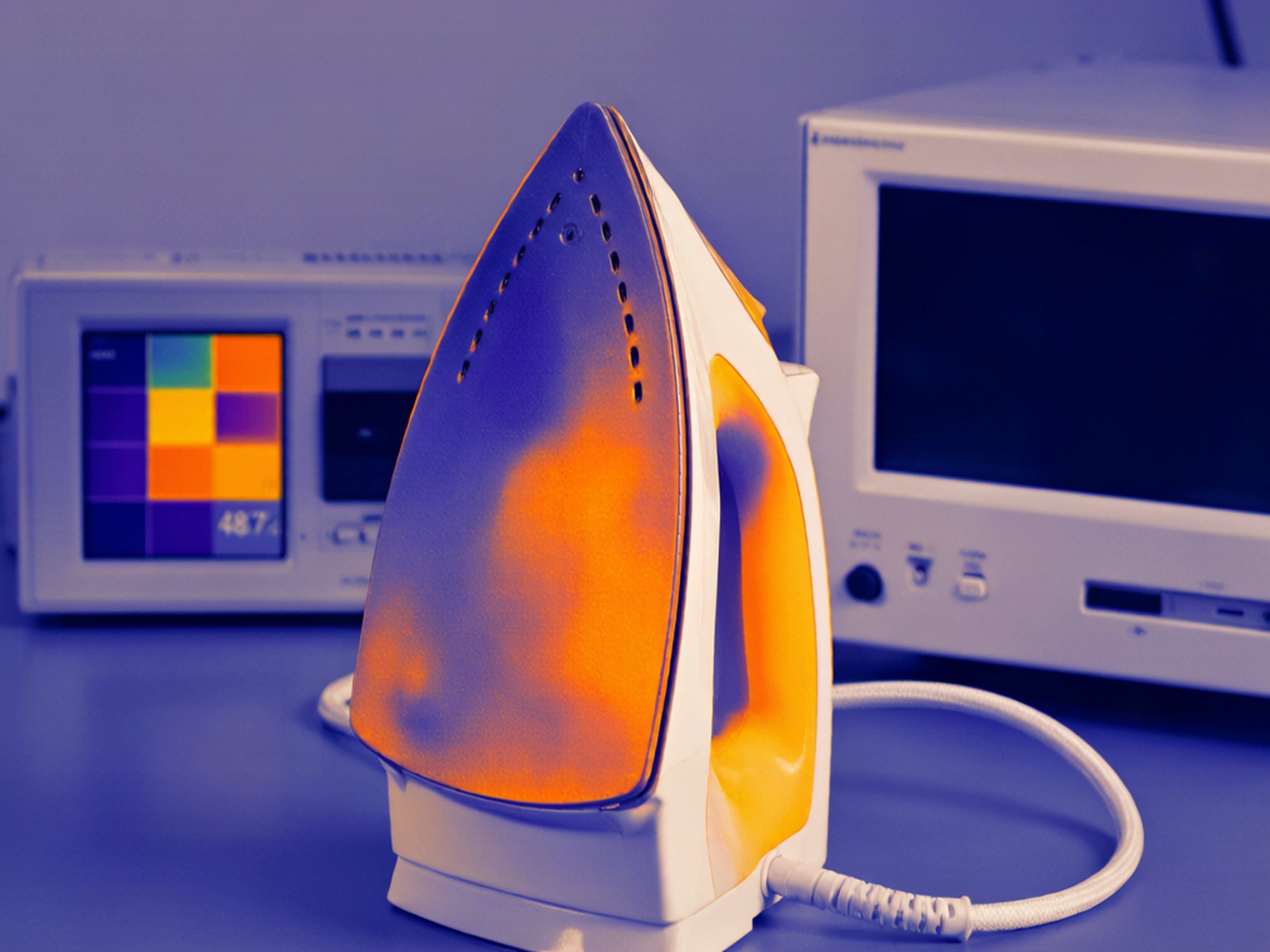

The temperature-rise test is the most critical item for irons: operating continuously at rated power, the accessible surface temperatures of the soleplate, handle and enclosure must not exceed the standard limits. The abnormal test simulates thermostat failure to verify that the thermal fuse can cut the circuit before a dangerous temperature is reached. Many manufacturers raise the set temperature to make the iron “heat up fast,” only to fail the abnormal test with an over-temperature soleplate — a balance must be struck between user experience and safety.

4. Mechanical Strength and Hazards

Beyond electrical safety, mechanical items such as drop resistance, stability, steam-pressure relief and handle-grip strength matter equally. Details like the latch of a foldable stand, upright anti-tip behavior and cable-strain relief are frequent failure points for smaller brands. Ningbo Xuntong Standard advises arranging a round of pre-testing right after the first structural prototype, driving tooling changes with data rather than experience.

5. What Ningbo Xuntong Standard Can Do for You

Ningbo Xuntong Standard can provide electric-iron pre-testing, non-compliance diagnosis and rectification coaching per IEC 60335-2-3 / GB 4706.2, covering electric shock, temperature rise and structure in full, and assist with multi-market certification such as CCC, CE and UKCA. For regulatory and standards interpretation see the Regulations & Standards column, for appliance testing capability see the Appliance Testing column, and for details visit the Ningbo Xuntong Standard official website. Front-loading the testing is the most effective way to cut tooling-change costs.
